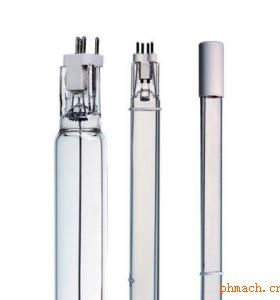

Heraeus低壓紫外殺菌燈 德國Heraeus普通低壓紫外殺菌燈采用高純度石英材質制造，能為客戶提供40%的254nm紫外輸出效率，當采用合成石英做材料時，也會產生185nm的紫外光譜。 根據不同的弧長，安裝長度和連接方式，Heraeus可提供兩種類型的低壓紫外殺菌燈： 254nm 光譜的低壓標準紫外殺菌燈 185nm和254nm 的可產生臭氧的采用合成石英管的低壓紫外殺菌燈。 同時，Heraeus還提供紫外沉浸式燈和低壓汞齊燈。此外，Heraeus還提供高效型低壓汞齊燈。 低壓紫外殺菌燈的典型光譜： 標準低壓紫外殺菌燈 | | Ozone-free | Ozone-generating | | Spectrum: wavelength | 254 nm | 185 nm, 254 nm | | Illuminated lenght * | 10 - 150 cm | 10 - 150 cm | | Electrical power | 5 - 80 W | 5 - 80 W | Typical UV efficiency
at 254 nm | 40 % | 40 % | | Typical efficiency at 185 nm, natural quartz glass | - |
approx. 6 % | | Typical efficiency at 185 nm, Synthetic quartz glass | - |
approx. 9 % | | Specific UVC flux | 0,1 - 0,4 W/cm | 0,1 - 0,4 W/cm | Ambient application
temperature | max. 40 °C | max. 40 °C | | Operating life | Up to 9,000 hours with a maximum fall-off of 30 % in UVC intensity | Up to 9,000 hours with a maximum fall-off of 30 % in UVC intensity |
高輸出低壓紫外殺菌燈
Ozone-free | Ozone-generating | | | Spectrum: wavelength | 254 nm | 185 nm, 254 nm | | Illuminated lenght * | 10-150 cm | 10-150 cm | | Electrical power | 10-150 W | 10-150 W | | Typical UV efficiency at 254 nm | 25-35% | 25-35 % | | Typical efficiency at 185 nm, natural quartz glass | - | approx. 6 % | | Typical efficiency at 185 nm, Synthetic quartz glass | - | approx. 9 % | | Specific UVC flux | 0,1-0,4 W/cm | 0,2-0,5 W/cm | Ambient application
temperature | max. 40°C | max. 40°C | | Operating life | Up to 9,000 hours with a maximum fall-off of
30 % in UVC intensity | Up to 9,000 hours with a maximum fall-off of
30 % in UVC intensity |
*其它長度可按需求定制 |
