主要用途
T-AⅡ型手電兩用單沖壓片機是為適應各級醫院和藥廠以及化工、科研單位將顆粒原料壓制成片劑的需要而生產的。
Main Application

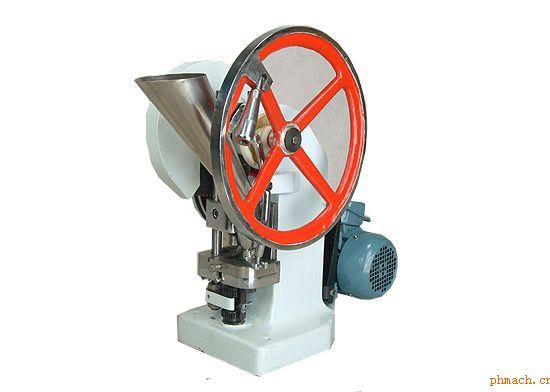

T-A Ⅱ manual and electric Single Tablet Press is produced to adapt the demand of all levels hospital, medicine factories, chemical and scientific research to press the granular materials into tablets.
特點
本機結構簡單，操作方便，體積小，重量輕，便于裝卸和搬運。無電源時也可用手搖壓片。為了適應壓制中草藥劑的新要求，本機較我公司原生產的TDP型單沖壓片機提高了機械強度，加大傳動率，提高壓片壓力，同時也增大了充填深度，擴大了壓片的規格范圍。
Characteristics
The machine structure is simple, and it is convenient to operate, and small volume, weight light, convenient remounted and carried. It can press tablets by manpower. To adapt to press Chinese herbal medicine, it compares with the former TDP Single Tablet Press of our company, it improves   mechanical intensity, increases driving efficiency, advances pressure, augment depth of filling and enlarge the confines of specification.
技術參數  Technical Specifications
型號 Model T-AⅡ
*大壓片力 Max. Pressure (kN) 60
*大壓片直徑 Max. Dia. Of Tablet (mm) 24
*大充填深度 Max. Depth Of Fill  (mm) 20
壓片產量 Max. Production Capacity ( tablets/hour) 5500
電機功率 Motor (W) 550
轉速 Speed (r/min) 1350
重量 Net Weight (kg) 100
外形尺寸 Overall Size (mm) 680×440×630
